Product
Product Center
Treatment Table XY-K-SF-9B
Model Number: XY-K-SF-9B
Certificate: ISO 13485, CE
Rated Input Power: 180VA
Specifications (mm): 1990 *660 *590 ~ 990 ± 3%
Power Supply: AC220V 50Hz DC24V
Function: Massage
Product Description

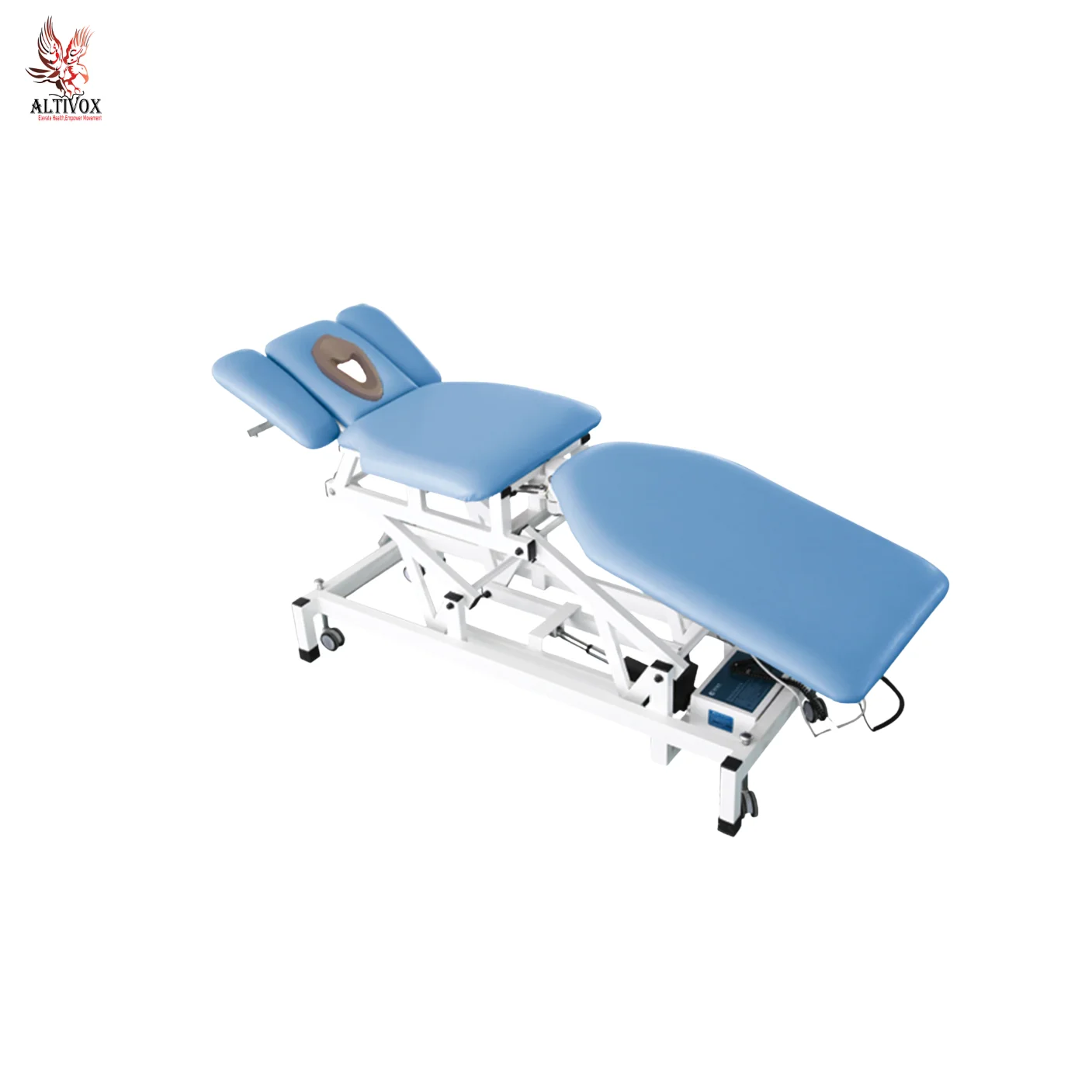

The multi-body medical diagnosis and treatment bed is composed of a bed frame, a lifting bed surface, a control device, a telescopic thrust motor (except manual lifting type) and a locking gas spring device. According to the need to adjust the height of the bed surface, patients with the needs of the therapist, multi-position adjustment. It is convenient for therapists to diagnose, examine, treat and massage the patients’ body parts.
Advantages
- Equipped with electric foot switch for electric lifting and lifting, and equipped with handle switch.
- The use of high quality gas spring, durable.
- Equipped with gas spring adjusting handle, adjustable lifting, convenient for patients comfortable position.
Scope of Application
Assisted massage, manipulation, physiotherapy, minimally invasive surgery.
It is prohibited for people with serious skin diseases, infectious diseases and damaged skin.
Parameters
| Model | XY-K-SF-9B |
|---|---|
| Power Supply | AC220V 50Hz DC24V |
| Rated Input Power | 180VA |
| Specifications (mm) | 1990 × 660 × 590 ~ 990 ± 3% |
| Lifting Function | Bed Lift Stroke: 0 ~ 400mm continuously adjustable |
| Arm Brackets’ Function on Left and Right Side of Head Section | Stroke Adjustable between 0~200mm |
| Head Section Function | Relative Horizontal Adjustment Angle: -25° ~ +30° Continuously Adjustable |
| Adjustment Angle of Lower Extremity Compared to The Thoracic Surface | -20° ~ +35° Continuously Adjustable |
| Lower Limb | Swing Angle to The Left And to The Right Each 30° |
