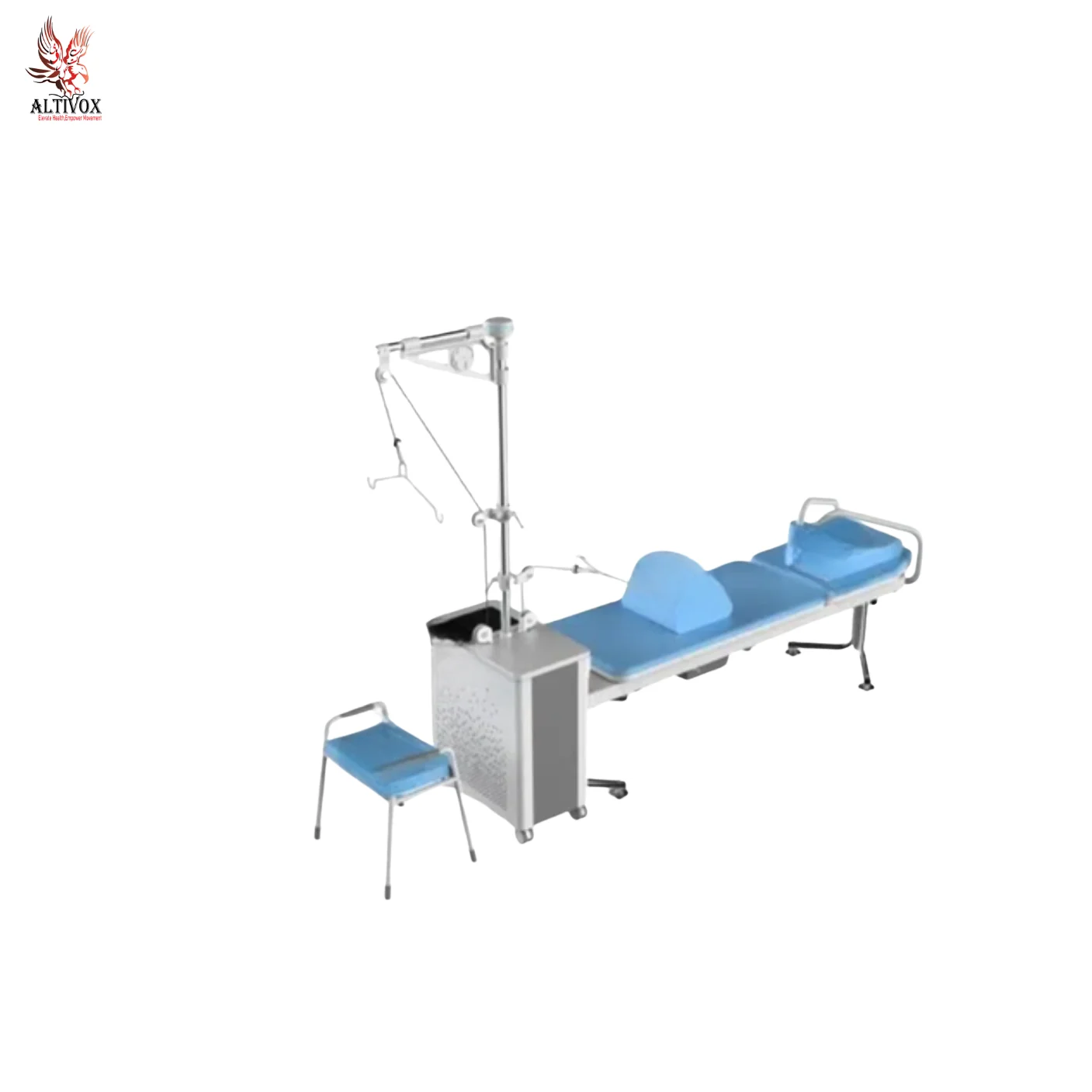

Spinal Decompression Traction Table AV-K-RXQY-III
Model Number: XY-K-RXQY-III
Certificate: ISO 13485, CE
Function: Spinal Decompression and Traction
Size: 2530mm*890mm*1935m
Lumbar Traction Range: 1kg~80kg
Voltage: 220V/50 Hz
Instrument Classification: Class II
Advantages
- With Angle traction function, the Angle traction range is adjustable from 17° to 42° continuously.
- Changes in traction at either of the output ends of lumbar and cervical traction (e.g. start, stop, or unexpected tension/relaxation) do not cause traction drift or jump at the other output ends.
- Can do continuous traction, intermittent traction, traction stability.
Scope of Application
For traction treatment of lumbar and cervical spondylosis patients.
Parameters
| Power Supply | 220±22V 50±1Hz |
| Size | 253*89*194cm |
| Travtion Mode | 1 Continuous and 3 Intermittent |
| Treatment Time | 0~99min |
| Hold Time | 1-99s |
| Rest Time | 1-99s |
| Angle Traction | 17°-42° |
| Lubar Traction | 1kgf-80kgf |
| Cervical Traction | 1kgf-35kgf |
| Traction Force Change Rate | Less Than 8kgf/s |
| Foot Plate Range | More Than 100mm |
| Loading | 150kg |
| Table Heating | 30℃, 35℃, 40℃ |
