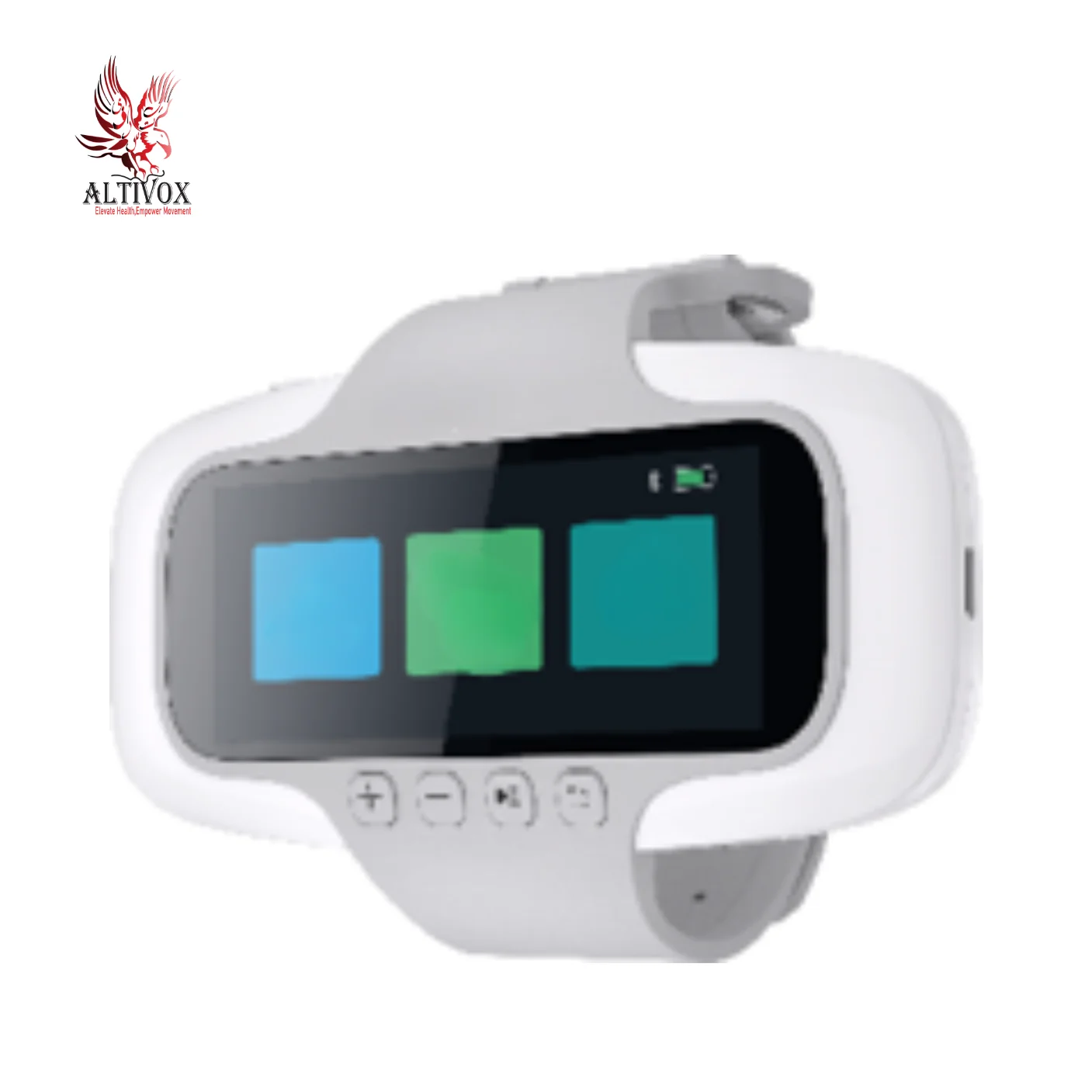

EMG Biofeedback Stimulation AV-K-SWFK-IA

Product Description

1. Power adapter: input a.c. 100V-240V, 50Hz-60Hz; output d.c. 5V, 3A; battery output d.c.7.4V
2. Dimensions:
   – Host: length: 375.5mm, width: 135.5mm, height: 26.6mm.
   – Electrode wire: 1300mm.
   – Electrode plate: Φ50mm.
3. EMG detection: feedback threshold: 10-1000μV.
4. NMES functional electrical stimulation mode: 4 fixed protocols.
5. ETS triggered electrical stimulation:
   a) Threshold: 10μV～1000μV adjustable
   b) Frequency : 60Hz
   c) Pulse width : 300μs
   d) Rise time: 1s

Advantages

• Biofeedback-driven: Real‑time EMG detection with matching electrical feedback enhances motor learning
• Interactive gaming: DSP app-games make repetitive training engaging
• Mirror therapy: Leverages healthy limb activity to stimulate the impaired side
• Portability: Compact, wireless, suitable for clinics, hospitals, and home use

 Scope of Application

• Primary: Post-stroke upper limb rehabilitation.
• Other uses:
  1. Neurological or peripheral nerve injury-related muscle atrophy
  2. Muscle spasticity control
  3. Rehabilitation in cerebral palsy, cerebral hemorrhage, cerebral infarction
  4. Coordination, strength, endurance training in smaller muscle groups

Category Details

Contraindications

• Neurologic progressive conditions: ALS, progressive MS
• Metal implants in the treatment area
• Malignancy, tuberculosis, thrombophlebitis, tetanus
• Pregnancy, pacemakers, electrical hypersensitivity
• Active infection or fever, untreated mental illness or psychosis
